Produced Water Pond in Canada near British Columbia Deep Water Survey LLSI

Location: British Columbia, Canada

Project Scope: Deep Water Survey

Date: March 2013

A Deep Water Survey was performed on a double-lined brine pond with a geonet between the secondary and primary geomembranes.  The pond was approximately 19,000 meters in size.

The pond was surveyed at full capacity with 52,000 cubic meters of solution in the lined area.  During the survey and brine water was placed between liners in order to have an electrical media above and below the primary geomembrane being surveyed.

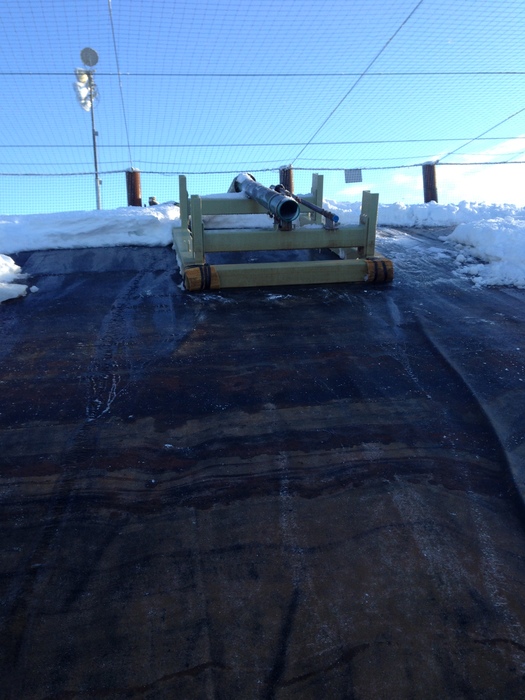

The pond had netting over the top of the pond which caused LLSI technicians to route the sensors beneath the netting in order to obtain accurate results.  Snow and ice were removed from the perimeter of the survey area to allow for the appropriate electrical isolation from earth ground.

Produced Water Pond in Canada near British Columbia Deep Water Survey LLSI
Produced Water Pond
